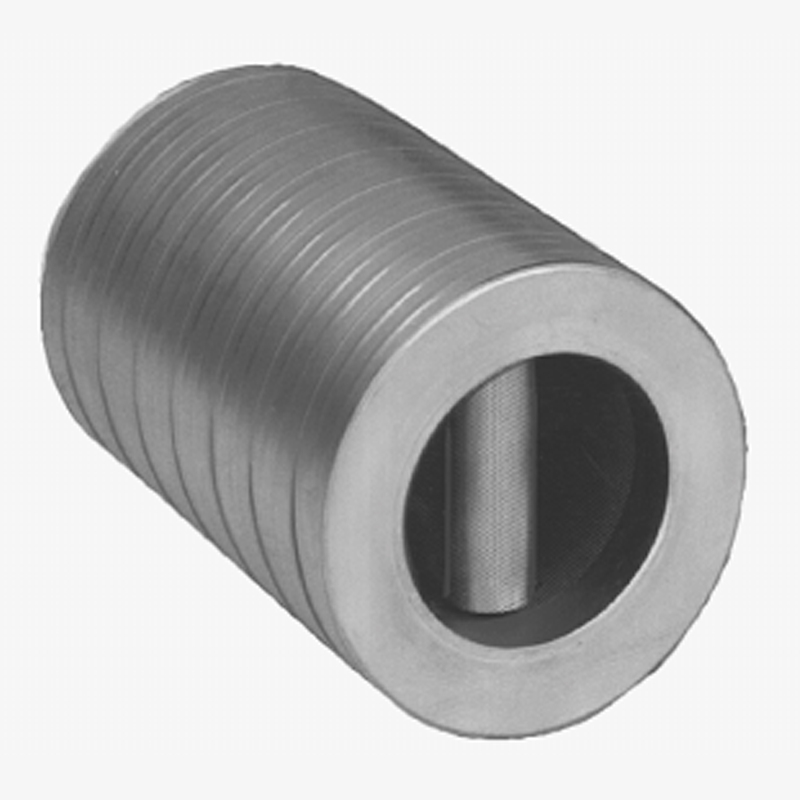

SLBGL

It is manufactured with double-sided NPL seals. Glass wool is used for acoustic insulation.

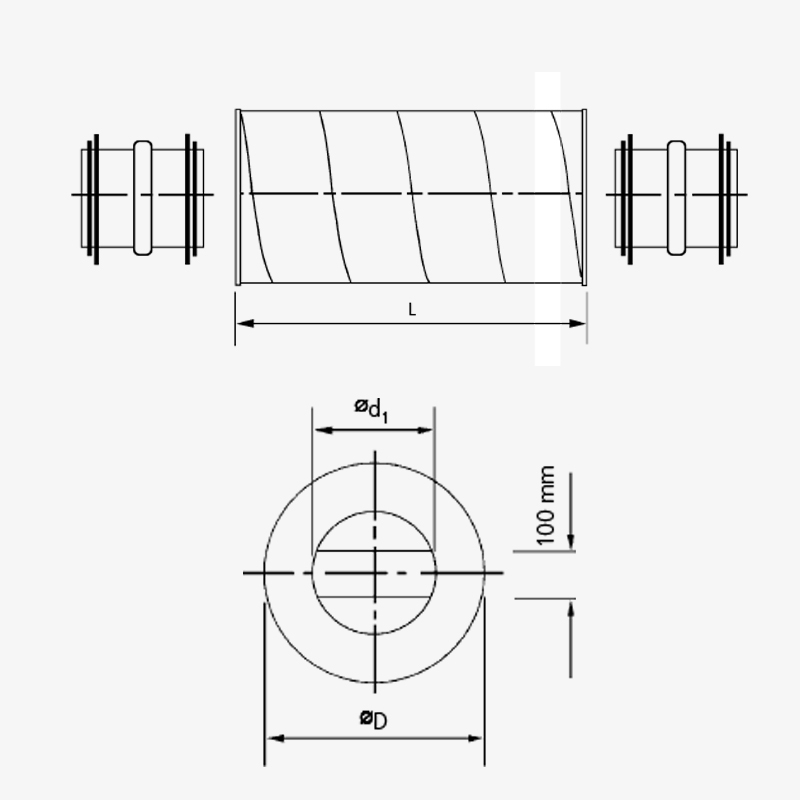

Description		∅d1 nom mm	∅D nom mm	L mm	Ins. attenuation (dB) in octave bands (Hz)						Weight
Description		∅d1 nom mm	∅D nom mm	L mm	125	250	500	1000	2000	4000	kg
SLBGL	315-1000	315	500	1000	8	20	34	43	52	37	30
	315-1200	315	500	1200	11	22	37	46	54	40	35
SLBGL	400-1000	400	600	1000	8	18	30	37	42	28	39
	400-1200	400	600	1200	10	22	33	44	44	31	43
	400-1500	400	600	1500	12	27	29	47	47	34	53
SLBGL	500-100	500	710	1000	7	16	26	31	32	20	46
	500-1200	500	710	1200	8	17	29	37	37	22	53
	500-1500	500	710	1500	9	25	37	45	43	25	67
SLBGL	630-1000	630	900	1000	6	14	21	26	24	16	59
	630-1200	630	900	1200	8	16	26	30	27	18	68
	630-1500	630	900	1500	9	20	31	37	31	20	87
SLGBL	800-1000	800	1000	1000	5	10	17	21	20	14	84
	800-1200	800	1000	1200	6	12	19	24	23	16	99
	800-1500	800	1000	1500	7	16	25	30	26	18	112
