HN/HF products are used effectively in both industrial and comfort ventilation systems. These products discharge exhaust air vertically, keeping the roof surface clean. Thanks to their high efficiency, fresh air can be taken even from near the jet cap. Products can be manufactured from galvanized, stainless or aluminum materials. 1/2'' cut-and-attach corrugated hose is used for effective removal of rain and snow water. Unless specified, our manufacturing will be carried out in the form of channel insertion.

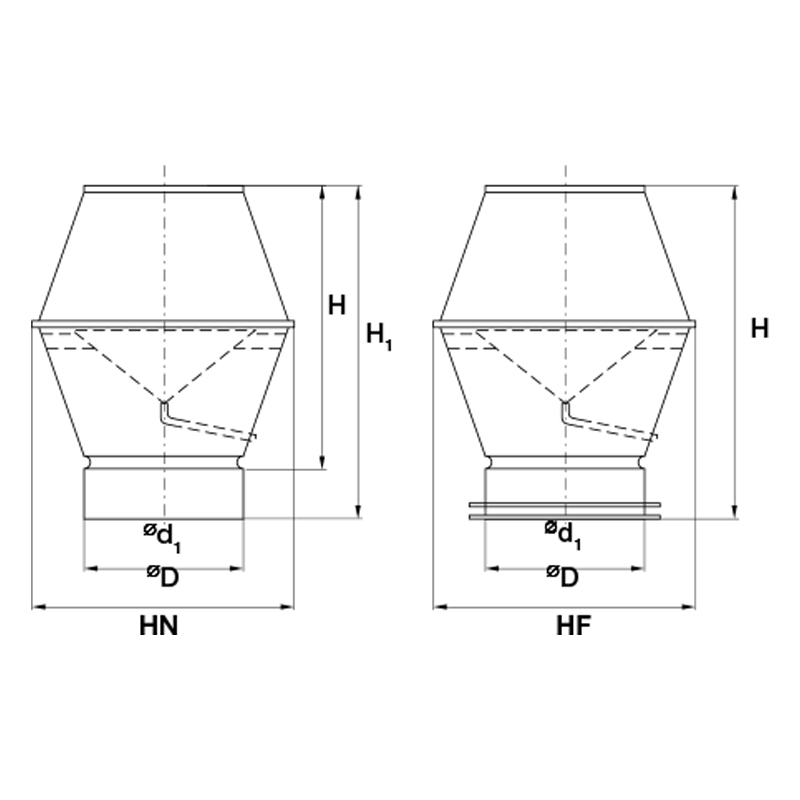

HN DIMENSIONS

∅d1 ∅D H
mm		 H1
mm		 kg
100 180 220 260 0,7
125 225 240 280 0,9
140 245 280 320 1,0
150 265 315 355 1,0
160 280 340 380 1,7
180 310 375 415 2,0
200 345 420 460 2,3
224 385 475 515 3,0
250 430 505 565 3,7
280 480 585 645 4,4
300 515 600 660 5,0
315 550 620 680 5,5
355 615 705 765 7,5

H = mounting dimensions

HF DIMENSIONS

∅d1 ∅D H
mm		 kg
400 685 905 13,2
450 775 970 16,4
500 855 1055 19,0
560 955 1170 23,0
600 1015 1255 30,0
630 1075 1300 34,0
710 1215 1490 44,0
800 1360 1630 51,0
900 1420 1925 69,0
1000 1600 2125 82,0
1120 1820 2360 91,0
1250 2020 2440 102,0
